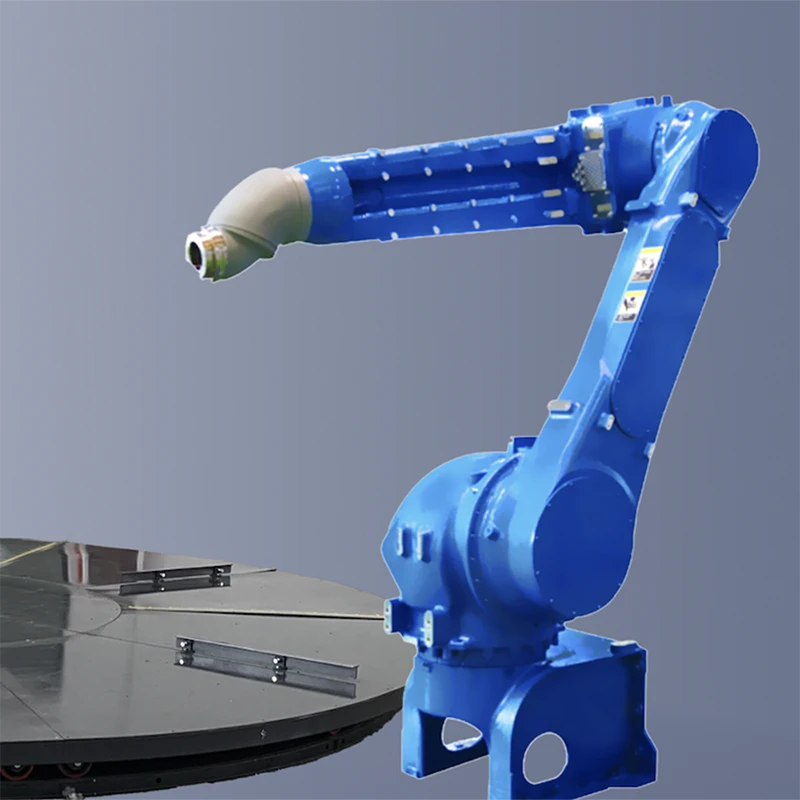

Spraying Robot Turntable
Spraying Robot Turntable is an automated spraying equipment designed for automobile manufacturing, machining, furniture painting and other industries, through linkage operation with turntable (such as automobile turntable, workpiece rotary table), to realize the workpiece 360 ° no dead angle spraying, to solve the traditional manual spraying efficiency, uneven coating, solvent hazards and other problems. This system is one of the key equipments of modern intelligent factory, which greatly improves the coating quality and production efficiency with precise control and efficient synergy.
01.Full angle coverage for better spray quality
02.Automated operations increase efficiency
03.Significant cost reduction and efficiency gains
喷涂机器人旋转盘参数
Spraying Robot Turntable Parameters
| MODEL | CTA30 | CTA45 | CTA50 |
| Diameter | 3000mm-20000mm（Customizable） | ||
| Height | 250mm/120mm | ||
| Load-bearing | 3000kg/4000kg/5000kg/6000kg（Customizable） | ||
| Motor | Special motor for spraying | ||
| Electrical Devices | Schneider | ||
| Control method | Manual/remote control, forward/reverse/stop | ||
| Control distance | ＞100m (Open environment) | ||
| Drive mode | Variable frequency drive | ||
| Brand | YGTEC | ||
| Color | Pebble Grey/Black (customizable) | ||
| Table Material | 5mm Anti-slip pattern plate（Customizable） | ||
| Overall structure | Overall fan-shaped carbon steel structure | ||
| Optional | Safety light curtain | ||
喷涂机器人旋转盘细节
Spraying Robot Turntable Parameters

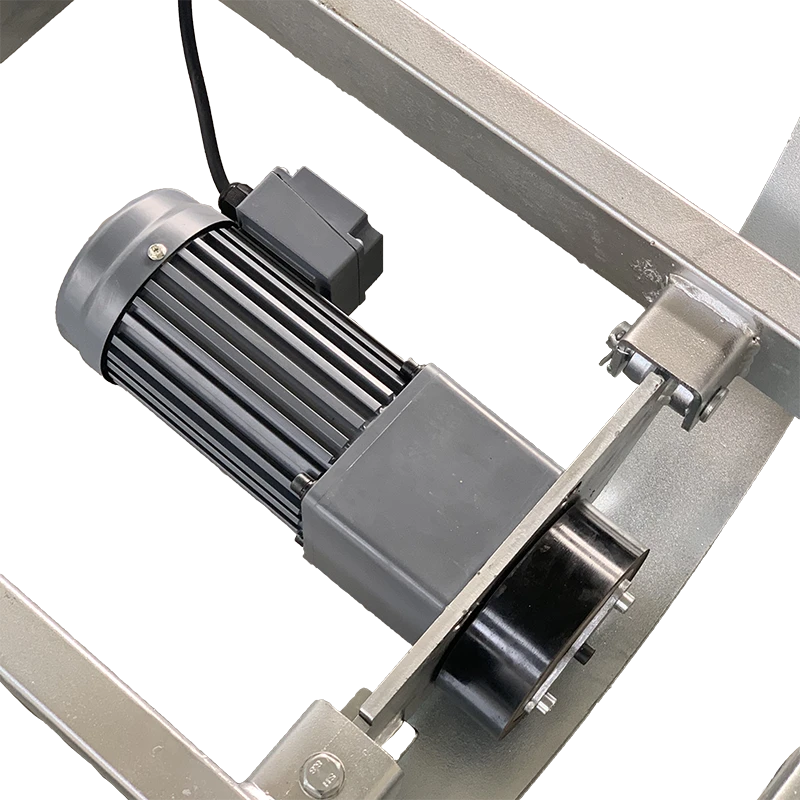

1. Specialized motors for spraying robots
2. Spraying Robot Turntable Specialized Wire
Wear-resistant and anti-aging materials with excellent insulation performance can withstand high-frequency motion stretching and stable line conduction, ensuring that the robot has no delay in signal and power transmission in complex spraying trajectories.
2. Spraying Robot Turntable Specialized Wire
Wear-resistant and anti-aging materials with excellent insulation performance can withstand high-frequency motion stretching and stable line conduction, ensuring that the robot has no delay in signal and power transmission in complex spraying trajectories.
